Kev's Guitar Rig

Kev's guitar rig for stage interacts with synthesizers and vocals as well as providing Kev with some great guitar sounds.

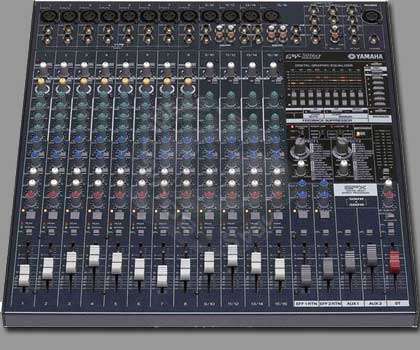

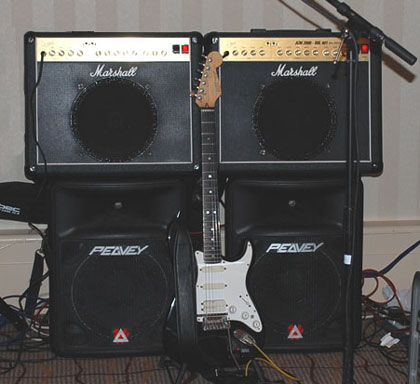

For amplification Kev uses 2 Marshall DSL 401 40Watt valve combos each with a Celestion 12" Speaker providing a stereo image. These are DI'd into a Yamaha EMX-5014E 500W per channel 16 channel stereo mixer pumping sound into 2 Peavey SX 200 cabinets. This gives Kev a good punch and a lovely warm sound on stage but 2 Peavey SB200 bass cabinets are also added on larger gigs to increase the overall sound. The signal is also piped through 2 DI boxes and into the main PA

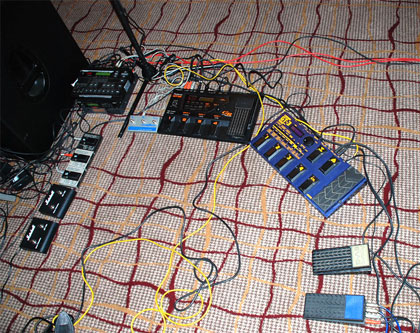

Kevs special Fender Strat Ultra plugs into a Boss GT3 multi-effects unit for distortions, choruses and delays then into a Boss RC-50 Loop station for on-stage guitar harmonies.

A Roland GR33 Guitar Synthesizer MIDI'd through to a Roland SC100 sound canvas is also connected to the Strat. This can simultaneously provide up to 24 different instruments on each of the guitar's 6 strings!

And if this were not enough, a Digitech VHM-5 harmonizer is also connected to both the vocal mic and the guitar synthesizer enabling up to 5 part vocal harmonies. This signal then goes though their own BOSS SE50 multi effects unit and into the main PA

Everything on the rig is completely cofigured for stereo sound and operation.

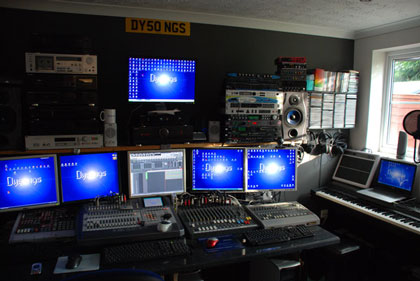

At home Kev has his own Dysongs Studio with many more pieces of high quality equipment and computers.

Kev's Stage Equipment:

Black American Fender Stratocaster Ultra fitted with a Roland GK2 MIDI pickup
2 Marshall DSL 401 valve combo amps
Yamaha EMX-5014E 500W+500W Power mixer
2 Peavey SX200 PA cabinets
2 PEavey SB200 PA Bass Enclosures
Boss GT-3 Multi Effects Processor
EV 5 Expression pedal
Boss RC-50 Loop Station
Roland GR33 and Roland GR50 Guitar Synths
Boss FV100 Volume Pedal
Digitech VHM-5 vocal Harmonizer
Boss SE-50 Vocal Multi Effects and FC-100 foot switch board
Behringer Stereo DI box
2 Ariston DI boxes to main PA


As a back up...
1971 Gibson Les Paul Deluxe Cherry Sunburst
Metalic Red American Fender Standard Strat
Johnson Millennium Stereo Guitar Combo

Gibson Les Paul Deluxe 1971 Cherry Sunburst
